All Eagle Trailer Jetters are designed with quality, versatility, and function in mind. The controls for engine start/stop, throttle, flow and pressure controls, and pulsation are conveniently located near the hose reel at the back of the trailer. The pressure and flow is completely adjustable, and a pressure relief allows for use of foot pedal controls or other flow control devices at the end of the jetting hose. The Dual Engine Design of the Eagle 300 and 600 models allow for control of the engine from a single throttle, and 1 engine can be used when working in smaller diameter lines, saving wear and tear as well as fuel.
Eagle 300/600 Features:
- 18 GPM / 4000 PSI
- 300 or 600 Gallon Water Tank
- Dual Engine Design For Versatility
- V-Twin Liquid Cooled
- Fuel Injection
- All Rear Mounted Controls
- 12 Volt Rewind Reel With Speed Control
- Power Wind And Unwind
- Pivoting Hose Guide
- 500 Ft. Kevlar Braided Low Friction Jetting Hose, (16,000 Burst Rated)
- Enclosed Front End
Trailer Features:
- 5200 GVW, Lifetime Structural Warranty
- Electric Brakes And Breakaway Switch
- Adjustable Height Coupler 2-5/16 Ball
- 5 X 2 Rectangular Tube Construction
- Built-In Tank Supports
- Welded Mount Drop-Leg Tongue Jack
- All LED Lighting
- Heavy Gauge Fabricated Fenders
- Step Style Fender Supports
- Chrome Wheels

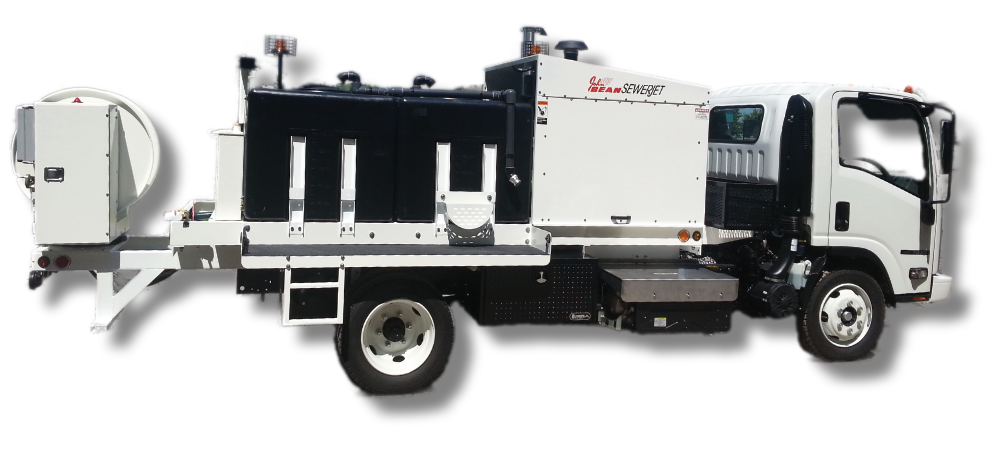

700 GALLON BASE TRUCK MODELS:
- SJ704020 – 700 gallon, Yanmar Diesel & FMC water pump, 40 gpm @ 2000 psi
- SJ704030 – 700 gallon, Kubota Diesel & FMC water pump, 40 gpm @ 3000 psi
- SJ701840 – 700 gallon, Yanmar Diesel & FMC water pump, 18 gpm @ 4000 psi
- SJ702540 – 700 gallon, Yanmar Diesel & Giant water pump, 25 gpm @ 4000 psi
- SJ706520 – 700 gallon, John Deere Diesel & FMC water pump, 65 gpm @ 2000 psi
TANK FEATURES:
- Water capacity is 700 gallon (2650 liters), consisting of two 350 gallon tanks
- Tank material is a black poly LLDPE (linear low density polyethylene).
- UV inhibitor which prevents the development of plant growth (i.e. algae, mold, etc.).
- The tank features an overhead air-gap fill and a curbside 2-½” brass fire hydrant fitting for easy and safe refill.
- Cold weather recirculation system allows water to be re-circulated through main hose and back to tank for below freezing operation
HOSE REEL:
- Standard reel capacity is 600’ of optional ¾” or 800’ of ½” high pressure hose and has air pressure clean-out connection
- Dual reel capacities are 600’ of ½” and 600’ of ¾” of high pressure hose (for 40 gpm @ 3000 psi only)
FUEL CAPACITY:
- 16 Gallon aluminum diamond plate fuel tank
OTHER FEATURES:
- Beacon light
- Auxiliary outlet with cutoff piped to curbside for optional wash down system
- 12 volt battery
- Hydraulic temp gauge
- Heavy duty hose guide
- Heavy duty pressure regulator
- Engine shroud
- One each 20° and 30° cleaning nozzle, one heavy duty 15” tubular nozzle extension and one heavy duty (Tiger Tail)
- Warranty is standard one year parts and labor, with exception of tank (5) and engine (2)
TRAILER FEATURES:
- Tandem axle for 14000 GVWR total (2 each of 7000 GVWR (3171 KG))
- PPG Commercial Performance gray primer and white paint (trailer and reel)
- DOT approved rubber mounted LED lights
- 2-5/16” ball hitch
- Electric brakes
- Tires are LT235/85R16 12-ply
CONTROL PANEL AND CABINET:
- Yanmar engines have a digital electronic control panel that presents an hour meter, oil pressure, voltage and throttle control
- John Deere engines have an analog panel with Murphy safety shutdown switch and optional electronic throttle control
- All control cabinets come standard with a beacon switch, ignition switch, water pressure gauge, reel speed control, reel in/out, emergency stop and electric clutch (water on/off)
