Pacific Tek offers several options on their vacuum excavator models and valve exerciser units: hydraulic, gas or diesel drives and truck, trailer or skid mounted units with a variety of configurations!
The large varieties of 9 different tank sizes allows us to have a vacuum system for every budget.
Vacuum Excavators

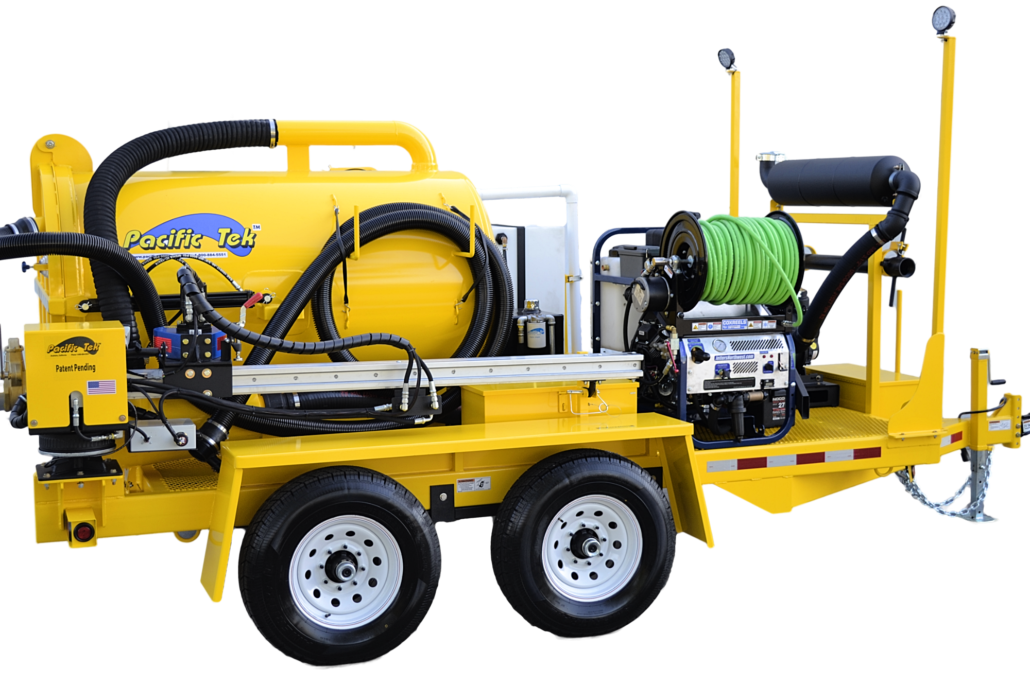

JET-VAC COMBINATION TRAILER
For Best Video Viewing select HD 1080p
Features of this unit include:
- Powder coat inside & out.
- Up to 1200 gallon capacity Vacuum tank.
- 12 GPM 3000 PSI Brute Hydro-Jetter (By Jetters Northwest)
- Optional Onboard Valve-Excersiser
- 4″ diameter pickup hose and non-conductive pickup wands.
- “Zero leak” submarine type hatch.
- “Centri-clean” 1-piece washable 10 micron filter element.
- Easy access to service and maintain all components.
- Skid built unit allows easy removal from trailer or truck bed.
- Lightest weight unit of it’s size on the market.
- Hydraulic tank tilt to 45 degrees.
- Custom trailer with “V” tail cutout for clean dumping.
- Trailer mounted unit weighs under 10,000 lbs. full.
- Hydraulic remote pendent for easy dumping.
- Reverse flow option allows pumping of liquid and slurry, also helps prevent hose clogging.
- The Jet-Vac Combination Trailer offers a Heavy-Duty Power-Vac Unit, The Brute Jetter and a State of the Art Valve Exerciser all in One Towable Package! Whether your Hydro-Excavating, Line-Jetting or Performing Valve Maintenance, the Power-Vac Combination Trailer has you covered! Choose between 12 GPM 3000 PSI or 9 GPM 4000 PSI BRUTE Jetter by Jetters Northwest. Vacuum Tank Sizes available in 250,350,500,800 and 1,200 Gallons. PT1000 Valve Exerciser has an available Torque range of 0-850 ft. lbs. and has an on-board A.I. System that operates and records all exercising data for thumb-drive storage.

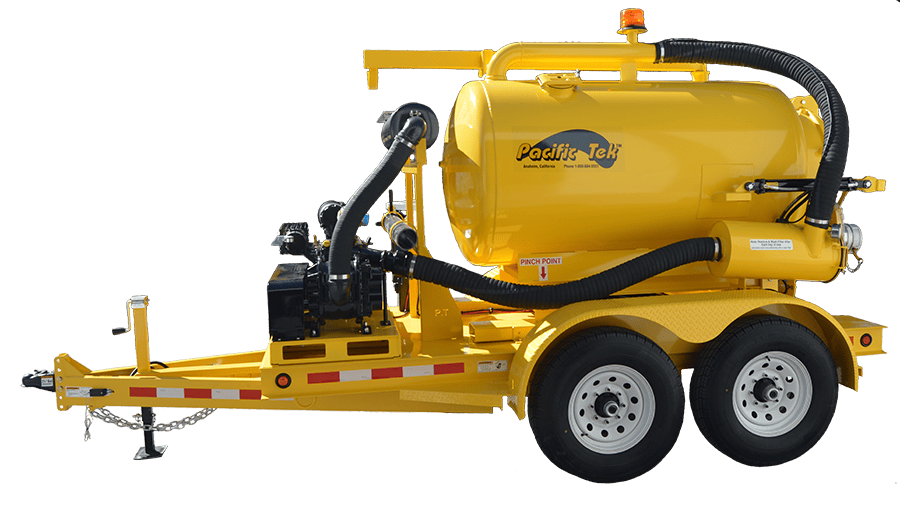

PV500
Features of this unit include:
- Powder coat inside & out.
- 500 gallon capacity debris tank.
- 4″ diameter pickup hose and non-conductive pickup wands.
- “Zero leak” submarine type hatch.
- “Centri-clean” 1-piece washable 10 micron filter element.
- Easy access to service and maintain all components.
- Skid built unit allows easy removal from trailer or truck bed.
- Lightest weight unit of it’s size on the market.
- Hydraulic tank tilt to 45 degrees.
- Custom trailer with “V” tail cutout for clean dumping.
- Trailer mounted unit weighs under 10,000 lbs. full.
- Hydraulic remote pendent for easy dumping.
- Reverse flow option allows pumping of liquid and slurry, also helps prevent hose clogging.
The PV500 High-Output “Power-Vac” features great tools like a water jet, air compressor, and a CD416 Core Drill for digging and opening up pavement. Able to be built on an existing vehicle from your fleet, this unit can help keep initial costs low.
If your application calls for excavating holes to locate underground utilities safely, cleaning underground vaults or valve boxes, the PV500 “Power-Vac” can make your job easier.
It can pick up mud, water, rocks, and other solids up to 4 in. in diameter from as far down as 25 ft. The lightest weight unit of it’s size on the market, the PV500 features include a 100 Gallon Water Tank, a 45° Hydraulic Tank Tilt, Easy Component Access, a “Zero Leak” Rear Hatch, “Centri-Clean” 1-piece Washable 10 Micron Filter Element, 4 in. diameter Pickup Hose, Non-Conductive Pickup Wands, and an optional Custom “V-Tailed “Trailer. The PV500 DHO is one of Pacific Tek’s most popular units. It is equipped with a 500 Gallon (2-1/2 cu. yd.) Debris Tank with Hydraulic Tilt for dumping and has an internal water Washdown System for the tank. This is the largest unit that can weigh under 10,000 lbs. when full and can be towed with any full size pickup truck or by crew trucks without special licensing or equipment preparation.
Choose from 8 different tank sizes, 3 horsepower ranges, and select accessories to fit your needs.
PV500 POWER VACUUM TRAILER PACKAGES
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV500-T | PV500, 26.5 HP EFI gas engine, 525 CFM Blower, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR |
| PV500-W-T | PV500, 26.5 HP EFI gas engine, 525 CFM Blower, 3500 PSI self contained pressure washer 13.5 HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR |
| PV500-D1W-T | PV800, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower, electric clutch engaged 3000 psi pressure washer pump, 100 gallon water tank, anti-freeze kit, air gap,V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
| PV500-HO-T | PV500 (High Output), 37HP gas engine, 825 CFM Blower, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR – Not sold in California |
| PV500-HO-W-T | PV500 (High Output), 37HP gas engine, 825 CFM Blower, 3500 PSI self contained pressure washer 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR – Not sold in California tandem 6,000# drop-down axles w/ electric brakes 12,000# GVWR |
| PV500-DHO-T | PV500 (Diesel High Output), 46HP diesel engine, 825 CFM Blower, manual hose assist boom, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR |
| PV500-DHO-W-T | PV500 (Diesel High Output), 46HP diesel engine driving an 825 CFM Blower, 3500 PSI self contained pressure washer, 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6,000# axles, electric brakes, 12,000# GVWR |
PV500 SKID MOUNTED VACUUM EXCAVATORS
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV500 | PV500, 26.5 HP EFI gas engine, 525 CFM blower. |
| PV500-W | PV500, 26.5 HP EFI gas engine, 525 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included |
| PV500-D1W | PV500, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower, electric clutch engaged 3000 psi pressure washer pump, 100 gallon water tank, anti-freeze (pressure washer, anti-freeze kit & water tank shipped loose) Air gap not included. |
| PV500-HO | PV500 (High Output), 37HP gas engine,n 825 CFM blower. Not sold in California |
| PV500-HO-W | PV500 (High Output), 37HP gas engine,n 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. Not sold in California |
| PV500-DHO | PV500 (Diesel High Output), 46HP diesel engine driving an 825 CFM blower. |
| PV500-DHO-W | PV500 (Diesel High Output), 46HP diesel engine driving an 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. |
OPTIONS AVAILABLE: CONSIDER THESE WHEN PURCHASING A SKID MOUNTED UNIT
| Reverse-Flow (R) | Vacuum Reverse Flow – Pushes liquids out of the hose or decanting valve off the back of vacuum tank |
| Telescoping Boom – Tank mounted (B) | Manually operated telescoping hose support boom. Extends 6′ to 10′. Mounted to the top of the debris tank. Includes travel rest, safety travel pins, reinforcement to tank for mounting |
| 200 Gallon Water Upgrade (W200) | In most cases, this increases GVW Rating of trailers. Upgrade a trailer mounted 800 gallon debris tank system to hold 200 gallons of water – Includes (2) #9,000 axles, reinforced fenders (water tanks mounted onto fenders), material, plumbing both tanks |
| Large-Drip-Pan | Stainless Steel drip pan for Vac PV250, PV350, PV500, PV800 (USED FOR FLATBED APPLICATIONS) |

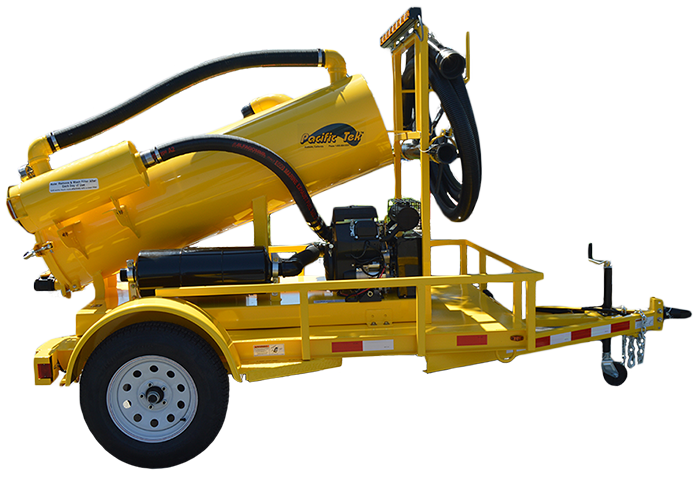

PV100
Features of our smallest standard unit include:
- Super Compact – Only 40″ x 72″ forklift from either end
- 20 HP / 325 CFM, belt drive, positive displ. Blower
- 100 Gal. Angled debris tank dumps clean and easy
- Easy access remote filter with 1-piece 10 micron washable element
- Powder coat (inside & out)
- Full 3″ pickup hose and tube for maximum performance
- Easily mounts in truck bed or on a trailer
- Remote electric start
PV150

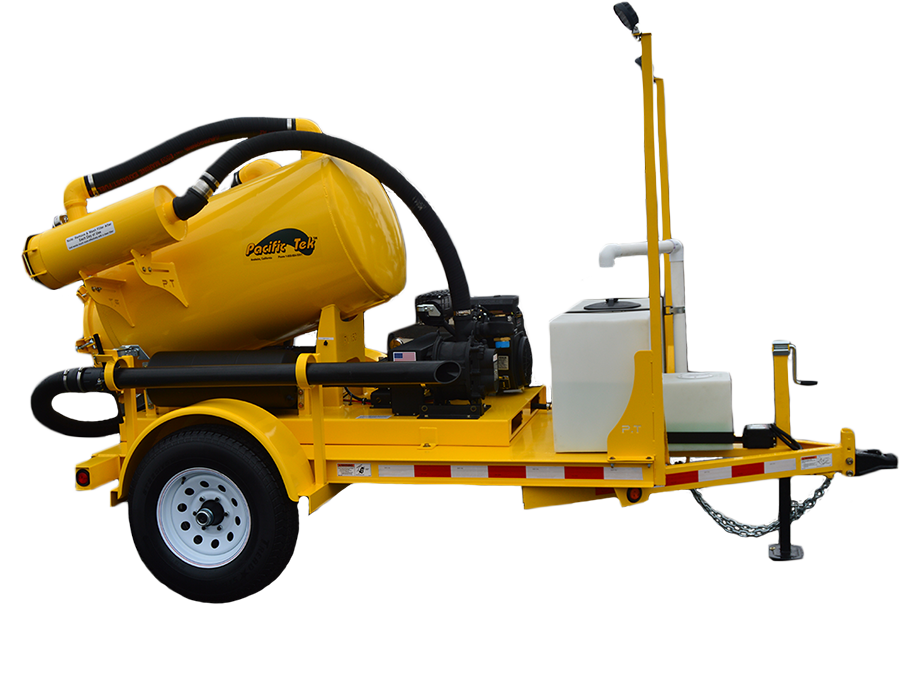

The Model PV150 features Vacuum and High Pressure Water for vacuum excavating and cleanup.
- Weighing in at 1820 lbs. this compact system can easily be mounted in a full-size pickup truck or trailer.
- Pressure washer jet and vacuum wands and separate hand held jetting wands are furnished with this complete digging package.
- Works in tight places or even off road. Easily move one vehicle to another.
- This self contained unit includes 20 HP / 325 CFM Vacuum system with 3″ pickup hose, centri-clean filtration and a 150 gallon tank.
- Fork lift into pickup bed and bolt down.
- Add fuel and head for the field and put it to work.
PV150 SKID MOUNTED VACUUM EXCAVATORS
| Model Identification | Description |
| PV150 | PV150 vacuum, 325 CFM blower, 20 HP gas engine |
| PV150-D1 | PV150, 325 CFM blower, 26.5 HP EFI eectric start gas engine. Drive-One ready to power PT1000-D1, PT26-D1 Valve Exercisers and/or D1-3000SPI pressure washer. Use this option when quoting flatbed applications. |
| PV150-D1W | PV150, Drive One 26.5 HP EFI gas engine, 325 CFM blower, electric clutch engaged pressure washer 3000 PSI @ 4 GPM, 60 water tank, anti-freeze kit. – All components mounted to single skid unless otherwise instructed. Air gap not included |
OPTIONS AVAILABLE: CONSIDER THESE WHEN PURCHASING A SKID MOUNTED UNIT
| Remote Start | Remote starter assembly places ignition. For most flatbed mounted vacuum systems. Key switch ignition, throttle, choke are all installed in a weather resistant box and wire harness applied to gas engine. Only for Kohler 14hp-26.5 HP EFI engines. No labor cost if built into new vacuum system. |
| Small-Drip-Pan | Stainless Steel drip pan for Vac PV100, PV100, PV150 & PV220 |
PV250
Model PV250 Features Include:
- Powder coated inside & out
- 26.5 HP EFI gas engine with 525 CFM Blower @ 15 inches of vacuum
- 3 or 4 Inch pick up hose with moveable swivel handles
- Full opening rear hatch with mechanical lift or optional hydraulic “One-Step” hatch.
- Compact size allows for mounting on trailer or across an 8 Ft Flat bed
- 1 Piece multi stage washable filter with “ Centri-Clean “ system.
- Hydraulically dumps for ease of debris removal from storage tank
- Hydraulic, pendent remote
PV-250 POWER VACUUM TRAILER PACKAGES
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH | |
| PV250-T | PV250, LED traffic director, 26.5 HP EFI gas engine, 525 CFM blower, tandem axle trailer, electric brakes, 7000# GVWR |
| PV250-D1W-T | PV250, 26.5 HP EFI Drive One 26.5 HP EFI gas engine, 525 CFM blower, electric clutch engaged pressure washer 3000 PSI @ 4 GPM, 60 gallon water tank, anti-freeze kit, air gap, LED traffic director, tandem axle trailer, electric brakes, 7000# GVWR |

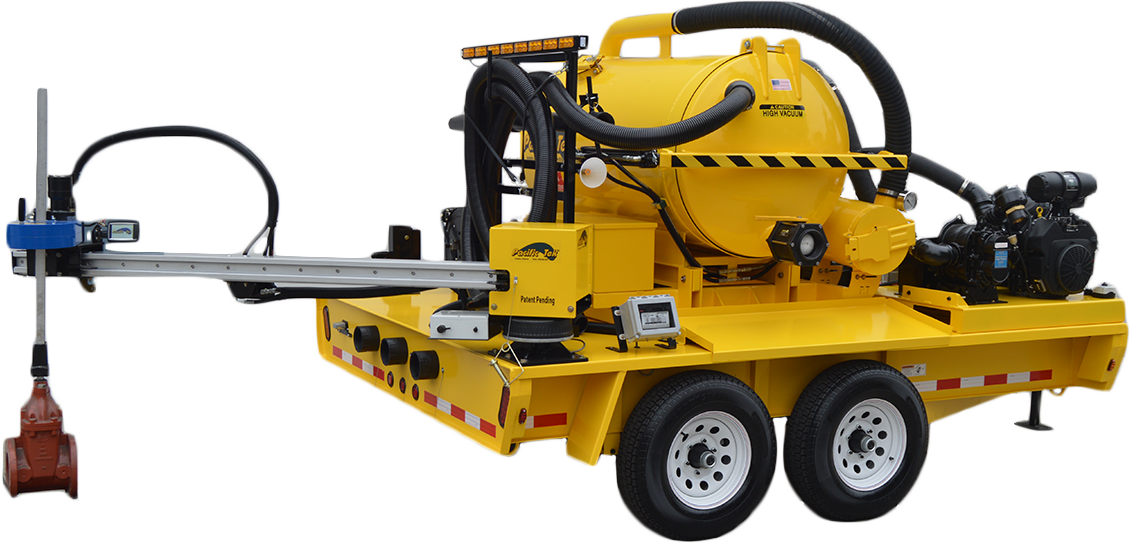

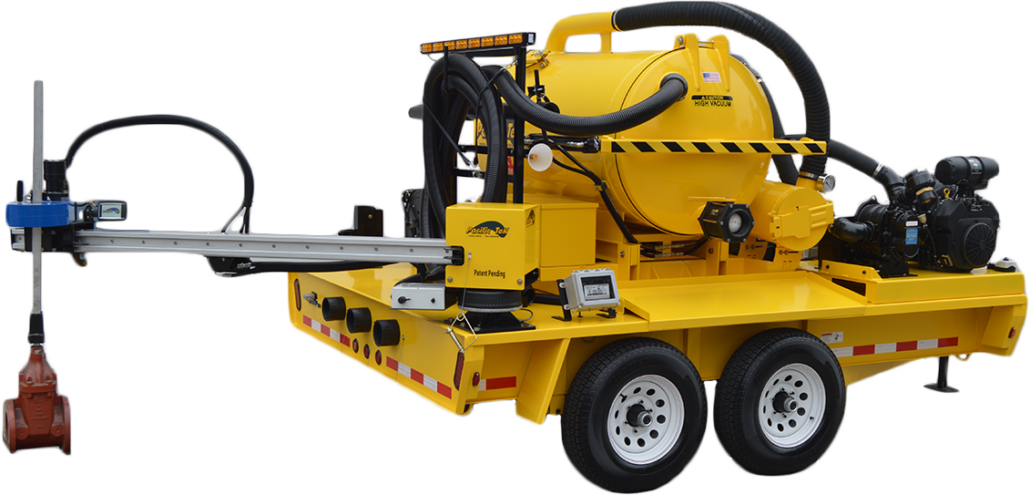

| PV250-PT1000-D1H-T | PV250, PT1000 Slide Head Valve Exerciser, 850 Ft-Lbs of torque, Ai function, Drive One 26.5 HP EFI gas engine, 525 CFM blower, LED traffic director, over-axle deck tandem 6000# axles trailer w/ electric brakes 9,990# GVWR |
| PV250-PT1000-D1HW-T | PV250, PT1000 Slide Head Valve Exerciser, 850 Ft-Lbs or torque, Ai function, Drive One 26.5 HP EFI gas engine, 525 CFM blower, electric clutch engaged pressure washer 3000 PSI @ 4 GPM, 60 gallon water tank, anti-freeze kit, air gap, LED traffic director, over-axle deck tandem 6000# axles trailer, electric brakes, 9,900# GVWR |

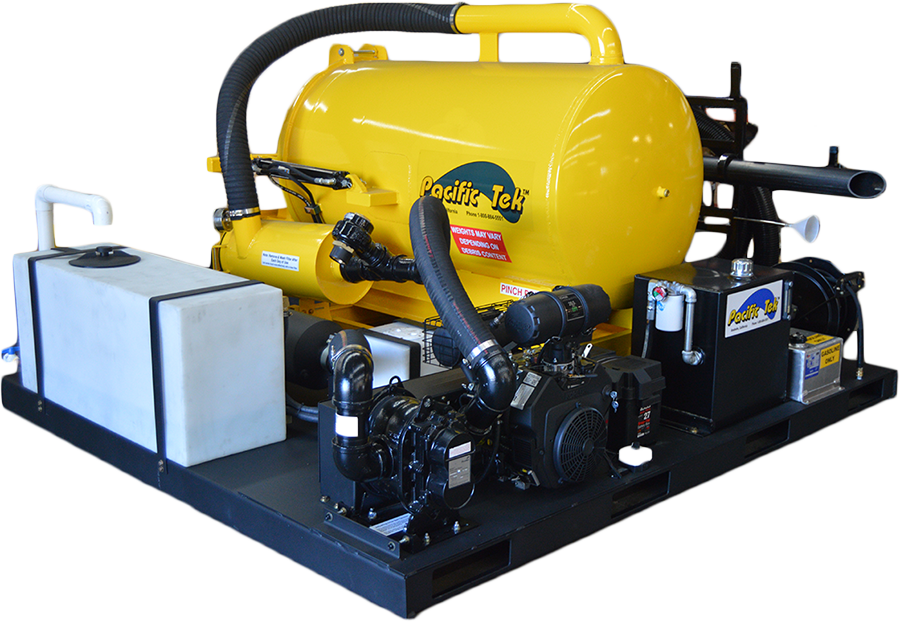

PV250 SKID MOUNTED VACUUM EXCAVATORS
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH | |
| PV250 | PV250 vacuum, 26.5 HP EFI gas engine, 525 CFM blower |
| PV250-D1 | PV250, 525 CFM blower, 26.5 HP EFI eectric start gas engine. Drive-One ready to power PT1000-D1, PT26-D1 Valve Exercisers and/or D1-3000SPI pressure washer. Use this option when quoting flatbed applications. |
| PV250-D1W | PV250, 26.5 HP EFI Drive One 26.5 HP EFI gas engine, 525 CFM blower, electric clutch engaged pressure washer 3000 PSI @ 4 GPM, 60 gallon water tank, anti-freeze kit. Air gap not included. Water tank mounted to extended skid for additional cost. |
OPTIONS AVAILABLE: CONSIDER THESE WHEN PURCHASING A SKID MOUNTED UNIT
| Remote Start | Remote starter assembly places ignition. For most flatbed mounted vacuum systems. Key switch ignition, throttle, choke are all installed in a weather resistant box and wire harness applied to gas engine. Only for Kohler 14hp-26.5 HP EFI engines. No labor cost if built into new vacuum system. |
| Aux Tool Circuit Kit (T) | Auxiliary hydraulic tool circuit – Includes hose reel, relief valve and selector valve kit – Used to upgrade Valve Exerciser units to use Class II (8 GPM @ 2000 PSI) hydraulic tools |
| Large-Drip-Pan | Stainless Steel drip pan for PV250, PV350, PV500, PV800, PV2100 |
PV350
Features of this unit include:
- Skid or Trailer Mounted
- Powder coat inside & out
- High Output & 525 or 825 CFM / 15″ of vacuum drive system
- 350 Gallon tank capacity
- 4″ Dia. pickup hose and non-conductive tube w/ handles
- “Zero-Leak” submarine type dump hatch
- Skid built unit allows removal from trailer as one piece
- 1-piece 10 micron washable filter
- Custom trailer with “V” tail, cut out for clean dumping
- Reverse flow option
The PV350 High-Output “Power-Vac” unit is equipped with an engine driven air compressor and a 4,500 watt electrical system for welding. A Core Drill, Loading Crane and Water Jet System completes this system with rear deck storage space for slurry, tools, and other accessories. Choose from either Standard (525 CFM) or High-Output (825 CFM) Models based based on your application needs. Both can be Skid or Trailer mounted whether Gas or Diesel Drive.
Customize your Vacuum Excavator “Power-Vac” with accessories such as: Large Dump Hatch & Lift, Diesel or High-Output Drives, Hose Support Boom, Solar Battery Charger, Over-sized Trailers for additional equipment, Water Jet Cutting Systems, or other features to meet your application needs.
Choose from either standard (525 CFM) or high output (825CFM) Models based based on your application needs. Both can be skid or trailer mounted. Either gas or diesel drive.
Customize your “Power-Vac” with accessories such as: Large dump hatch & lift, Diesel or high output drives, hose support boom, solar battery charger, oversize trailer for other equipment, water jet cutting systems, or other features to meet your application needs.
PV350 POWER VACUUM TRAILER PACKAGES
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV350-T | PV350, 26.5 HP EFI gas engine, 525 CFM Blower, V-tail cutout trailer tandem 6000# axles, electric brakes 9,990# GVWR |
| PV350-W-T | PV350, 26.5 HP EFI gas engine, 525 CFM Blower, 3500 PSI self contained pressure washer 13.5 HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR |
| PV350-D1W-T | PV350, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower, electric clutch engaged 3000 psi pressure washer pump, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR |
| PV350-HO-T | PV350 (High Output), 37HP gas engine, 825 CFM Blower, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR – Not sold in California |
| PV350-HO-W-T | PV350 (High Output), 37HP gas engine, 825 CFM Blower, 3500 PSI self contained pressure washer 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR – Not sold in California |
| PV350-DHO-T | PV350 (Diesel High Output), 46HP diesel engine, 825 CFM Blower, manual hose assist boom, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR |
| PV350-DHO-W-T | PV350 (Diesel High Output), 46HP diesel engine driving an 825 CFM Blower, 3500 PSI self contained pressure washer, 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 6000# axles, electric brakes, 9,990# GVWR |
PV350 SKID MOUNTED VACUUM EXCAVATORS
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV350 | PV350, 26.5 HP EFI gas engine, 525 CFM blower |
| PV350-W | PV350, 26.5 HP EFI gas engine, 525 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. Water tank mounted to extended skid for additional cost. |
| PV350-D1W | PV350, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower and electric clutch engaged 3000 psi pressure pump, 100 gallon water tank, anti-freeze kit, (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included Water tank mounted to extended skid for additional cost. |
| PV350-HO | PV350, 37HP gas engine, 825 CFM blower. Not sold in California |
| PV350-HO-W | PV350, 37HP gas engine, 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. Water tank mounted to extended skid for additional cost. Not sold in California |
| PV350-DHO | PV350, 46HP diesel, 825 CFM blower |
| PV350-DHO-W | PV350, 46HP diesel engine, 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. Water tank mounted to extended skid for additional cost. |
OPTIONS AVAILABLE: CONSIDER THESE WHEN PURCHASING A SKID MOUNTED UNIT
| Reverse-Flow (R) | Vacuum Reverse Flow – Pushes liquids out of the hose or decanting valve off the back of vacuum tank |
| Telescoping Boom – Tank mounted (B) | Manually operated telescoping hose support boom. Extends 6′ to 10′. Mounted to the top of the debris tank. Includes travel rest, safety travel pins, reinforcement to tank for mounting |
| 200 Gallon Water Upgrade (W200) | In most cases, this increases GVW Rating of trailers. Upgrade an above 350 gallon debris tank system to hold 200 gallons of water – Includes (2) #6,000 axles, reinforced fenders (water tanks mounted onto fenders), material, plumbing both tanks |
| Large-Drip-Pan | Steel drip pan for Vac PV250, PV350, PV500, PV800 (USED FOR FLATBED APPLICATIONS) |

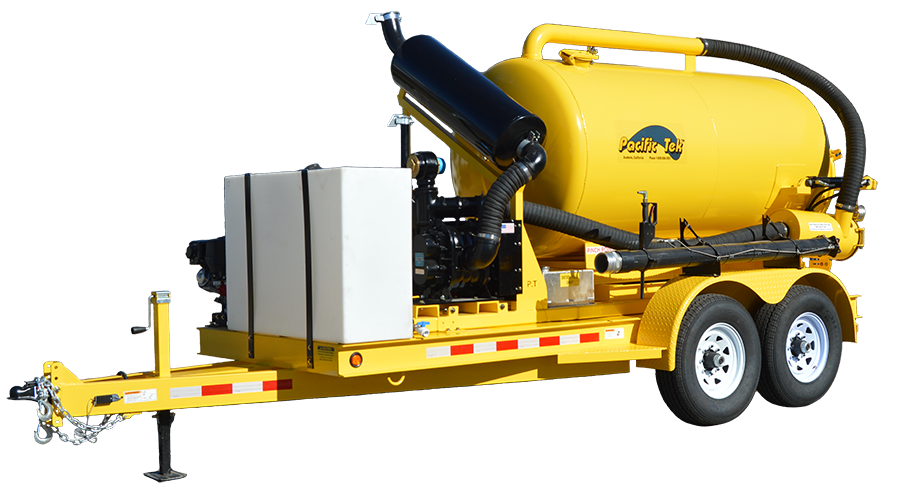

PV800
Features include:
- Powder coat inside & out.
- 800 gallon capacity debris tank.
- 4″ diameter pickup hose and non-conductive pickup wands.
- “Zero leak” submarine type hatch.
- “Centri-clean” 1-piece washable 10 micron filter element.
- Easy access to service and maintain all components.
- Skid built unit allows easy removal from trailer or truck bed.
- Lightest weight unit of it’s size on the market.
- Hydraulic tank tilt to 45 degrees.
- Custom trailer with “V” tail cutout for clean dumping.
- Trailer mounted unit on a 14,000 GVW trailer.
- Reverse flow option allows pumping of liquid and slurry, also helps prevent hose clogging.
- Hydraulic remote pendent for easy dumping.
Excellent for both boring fluid recovery and light excavating the PV-800 holds 4 cu. yds. of solid or liquid material. Water jet system is useful in both dig assistance and cleanup.
PV800 POWER VACUUM TRAILER PACKAGES
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV800-T | PV800, 26.5 HP EFI gas engine, 525 CFM Blower,V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
| PV800-D1W-T | PV800, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower, electric clutch engaged 3000 psi pressure washer pump, 100 gallon water tank, anti-freeze kit, air gap,V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
| PV800-W-T | PV800, 26.5 HP EFI gas engine, 525 CFM Blower, 3500 PSI self contained pressure washer 13.5 HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
| PV800-HO-T | PV800 (High Output), 37HP gas engine, 825 CFM Blower, V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR – Not sold in California |
| PV800-HO-W-T | PV800 (High Output), 37HP gas engine, 825 CFM Blower, 3500 PSI self contained pressure washer 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR – Not sold in California |
| PV800-DHO-T | PV800 (Diesel High Output), 46HP diesel engine, 825 CFM Blower, V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
| PV800-DHO-W-T | PV800 (Diesel High Output), 46HP diesel engine driving an 825 CFM Blower, 3500 PSI self contained pressure washer, 13HP engine, 100 gallon water tank, anti-freeze kit, air gap, V-tail cutout trailer tandem 7,000# axles, electric brakes, 14,000# GVWR |
PV800 SKID MOUNTED VACUUM EXCAVATORS
| Model Identification | Description |
| ALL UNITS HAVE POWER TILT AND ONE-STEP-HATCH DOOR | |
| PV800 | PV800, 26.5 HP EFI gas engine driving a 525 CFM blower, One Step Hatch door, skid |
| PV800-W | PV800, 26.5 HP EFI gas engine driving a 525 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included |
| PV800-D1W | PV800, 26.5 HP EFI gas engine using the Drive One System to power a 525 CFM blower and 3000 psi pressure washer electric clutch engaged pump, 100 gallon water tank (not mounted on skid), anti-freeze kit (not mounted to skid). Air gap not inlcuded. |
| PV800-HO | PV800 (High Output), 37HP gas engine driving an 825 CFM blower. Not sold in California |
| PV800-HO-W | PV800 (High Output), 37HP gas engine driving an 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not inlcuded. Not sold in California |
| PV800-DHO | PV800 (Diesel High Output), 46HP diesel engine driving an 825 CFM blower. |
| PV800-DHO-W | PV800 (Diesel High Output), 46HP diesel engine driving an 825 CFM blower, self-contained 3500 PSI self contained pressure washer 13.5HP gas engine, 100 gallon water tank, anti-freeze kit (pressure washer, anti-freeze kit & water tank shipped loose). Air gap not included. |
OPTIONS AVAILABLE: CONSIDER THESE WHEN PURCHASING A SKID MOUNTED UNIT
| Reverse-Flow (R) | Vacuum Reverse Flow – Pushes liquids out of the hose or decanting valve off the back of vacuum tank |
| Telescoping Boom – Tank mounted (B) | Manually operated telescoping hose support boom. Extends 6′ to 10′. Mounted to the top of the debris tank. Includes travel rest, safety travel pins, reinforcement to tank for mounting |
| 200 Gallon Water Upgrade (W200) | In most cases, this increases GVW Rating of trailers. Upgrade a trailer mounted 800 gallon debris tank system to hold 200 gallons of water – Includes (2) #9,000 axles, reinforced fenders (water tanks mounted onto fenders), material, plumbing both tanks |
| Large-Drip-Pan | Stainless Steel drip pan for Vac PV250, PV350, PV500, PV800 (USED FOR FLATBED APPLICATIONS) |
PV1200
Features of this unit include:
- 2-part “hi-buildup” epoxy finish on tank and skid.
- “Centri-clean” air flow and filtration system for maximum use between service to filter, and easy access.
- Quiet drive system with remote acoustical / baffled silencer.
- Skid built unit assembly to allow remounting as one-piece unit.
- Custom trailer with “V” tail cutout for cleaner dumping
Unit is skid mounted and can be custom mounted on a 18,000 lb. GVW triple axle trailer. The unit shown has high output, 37 HP / 825 CFM drive system. Excellent for boring fluid recovery the PV1200 holds 6 cu. yds. of solid or liquid material.
