PT8
PT8 Standard Features:
- Handles can be positioned for either one-man or two-man operation.
- Built in torque adjustmemnt with readout for safe start-up.
- 0 to 60 RPM turning speed and directional control in one, twist grip handle.
- Produce up to 350 ft. lbs. of ruse lockout to withstand 800 ft. lbs. safely.
- Reversible and resetable LED revolution counter built in.
- Can be used alone with it’s lightweight hydraulic power unit (Model PU-2g, or as a helper to the truck mounted valve operator on valves located off the street.)
Eliminate potential lower back injuries and let the PT8 turn your underground gate valves. Can be used alone with it’s lightweight, hydraulic power unit, Model PU-2G, or as a helper to the truck mounted valve operator on valves located off the street. This versatile and lightweight tool let’s the operating person stand still while it does the turning. Get accurate revolution counts on your valve operations. Use as part of an exersizing program or to quickly effect valve shut-downs when they’re needed. The built-in torque adjustment let’s you start out low and work your way up to the torque required.
PT8 VALVE EXERCISER KITS: TRAILER & CARRIAGE
| Model Identification | Description |
| PT8 Kit | Portable hand held PT8 Valve Exerciser. Self contained mobile cart, gas engine powered class II hydraulic power station. Hydraulic oil reservoir, 25′ of twin hydraulic hose with flat face quick disconnect fittings |
PT26
PT26 Standard Features:
- Turns valves with adjustable torque from 0 to 1800 ft. lbs.
- Powered by vehicle hydraulics (PT26) or an on-board engine and hydraulic pump (PT26G).
- Can be mounted across pick-up bed, in utility box, or trailer mounted.
- All hydraulic circuitry built into a single manifold.
- All exterior parts powder coat painted for a long lasting finish.
- Permanently lubricated Powerhead frame rolls out on sealed wheels with bearings.

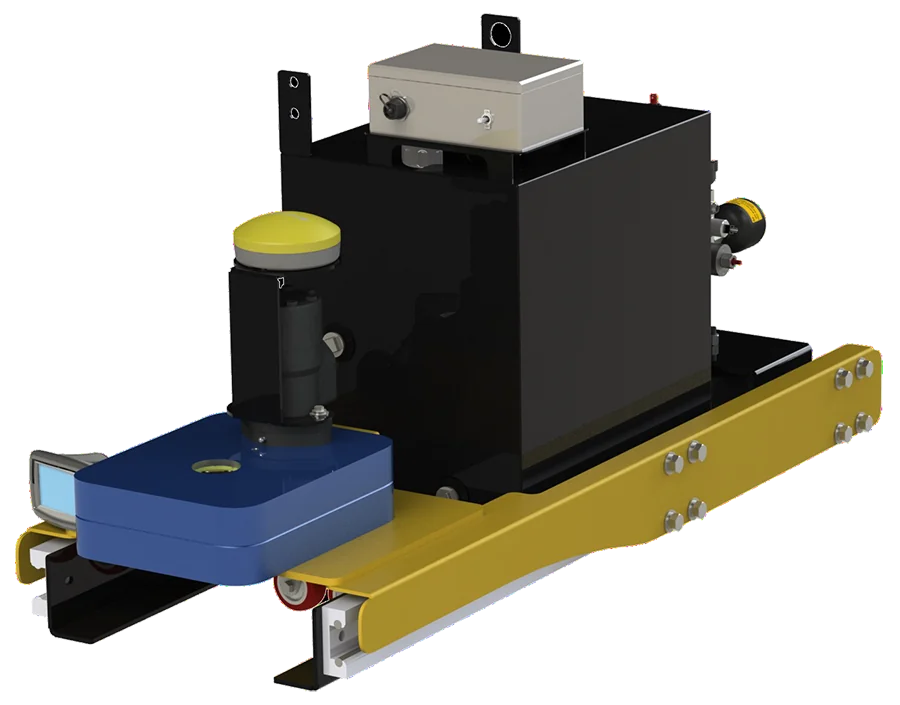

The PT26 utility skid-mounted valve operator. Make any pickup truck a valve operator truck. Can be easily removed or put back in with a standard forklift as the unit is entirely self-contained. This unit can also be used with the PV66 Vacuum Excavator for a combined vehicle system.
The PT26 can operate underground gate valves from 6 in. to 60 in. diameter with an adjustable torque range from 0 to 1800 ft. / lbs. The torque control device insures that only enough torque to turn the valve is present which is more gentle on valve stems than normal manual operation. A built-in swivel head allows operation at up to 15° of misalignment and the power head extends up to 28 in. for easy setup. Revolution counters gives readouts of valve turns to 1/10th of a revolution and the torque setting can be easily checked while valve turning without valve strain.
Gauges include pressure, torque, oil temp., and oil filter condition and controls include torque, direction, speed, and auxiliary circuit. In addition the oil reservoir holds up to 22 gallons of hydraulic fluid with optional truck or trailer mounting available.
PT26 VALVE EXERCISERS
| Model Identification | Description |
| PT26 | Reaches 30″ from mounting station. Valve Exerciser has 1800 ft-lb of torque. Data Collection Ready |
| PT26-G | Reaches 30″ from mounting station. Valve Exerciser has 1800 ft-lb of torque. 14HP direct drive engine power pack. Engine power not compatible with Tool Circuit. Data Collection Ready |
| PT26-GT | PT26 reaches 30″ from mounting station. Valve Exerciser has 1800 ft-lb of torque. 20HP direct drive power pack, selector valve, Class II hydraulic tool circuit, flat face connections, oil cooler and retractable hose reel. Data Collection Ready |
PT26 VALVE EXERCISER KITS: TRAILER & CARRIAGE
| Model Identification | Description |
| PT26-G-T | Trailer mounted PT-26 Valve Exerciser – 240 degree swinger, PT26 reaches 30″ from mounting station. Valve Exerciser has 1800 ft-lb of torque. 14HP gas engine, direct drive hydraulic pump, Over-axle deck, clipped corner, single electric brake axle 3500# GVWR. Data Collection Ready |
| PT26-GT-T | Trailer mounted PT-26 Valve Exerciser – 240 degree swinger, PT26 reaches 30″ from mounting station. Valve Exerciser has 1800 ft-lb of torque. 20HP direct drive power pack, selector valve, Class II hydraulic tool circuit, flat face connections, 19 gallon oil tank, oil cooler and retractable hose reel. Over-axle deck, clipped corner, single electric brake axle 3500# GVWR. Data Collection Ready |
OPTIONS AVAILABLE
| Swinger Kit (optional) | PT26 Swinger Kit track and wheels to allow the units swivel 180 degrees |
PT1000
PT1000 Standard Features:
- Torque can be controlled from 0 to 850 ft. lbs.
- AI system: controller is manual or Automatic.
- Power head is mounted to a carriage that rides the full length of the track.
- Exercise valves from 0′ to 7′ or 0′ to 8′ on a custom trailer or truck.
- 12″ square mounting plate with a 1-1/2″ pivot post.
- Pacific Tek locking system.
- Telescoping 5′ to 8′ square aluminum key and 1-1/2″ to 2″ valve nut adapter.
- Driven by a single hydraulic motor.

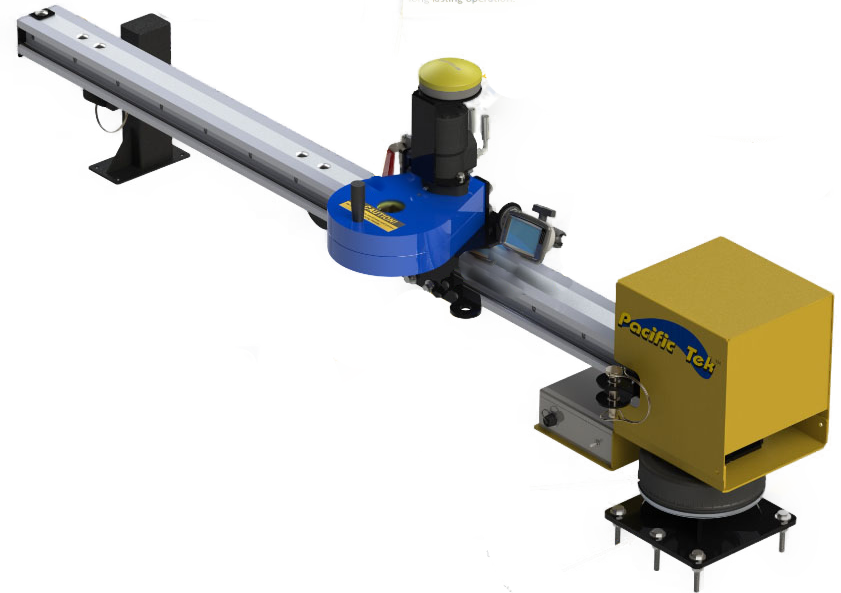

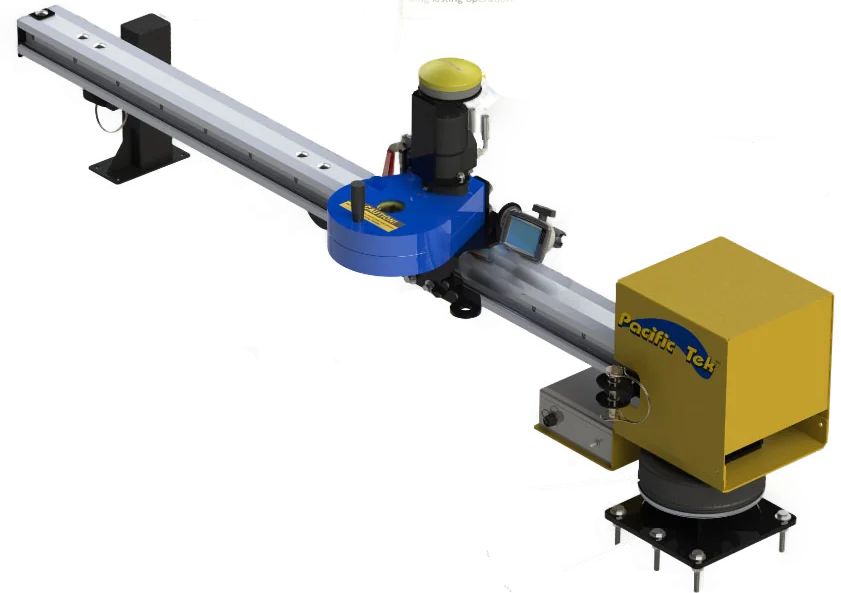

A track mounted valve exerciser for opening and closing underground valves. The PT1000 can operate underground valves from 4 in.- 60 in. diameter with adjustable torque range from 0 to 850 ft. / lbs.. It has an operational horizontal reach of up to 8’ and a swing radius of up to 270 degrees. The unit can be mounted in various configurations, stowing width-wise or length-wise on a custom Pacific Tek trailer, flatbed service vehicle or dedicated single and tandom axle trailers. This unit can be powered from a separate hydraulic unit or vehicle driven one pump system.
The model shown above is a PV100-PT1000-AI-D1HW-T, which features a 100 gallon Vacuum Excavator with the PT-1000 Slide Head, Drive One System, LED traffic director, single axle trailer with electric brakes rated at 5,200 lb GVW.
TRAILER PACKAGES
PT1000 VALVE EXERCISERS
| Model Identification | Description |
| PT1000 | Slide Head Valve Exerciser reaches 7′ from base to head. This is for units mounted widthwise on trailers. Valve Exerciser has 850 ft-lb of torque (No power pack). Data Collection Ready |
| PT1000(8) | Up-Charge for additional 1′ length on the reach of the PT1000 Valve Exerciser. This length is used on units mounted on the width of a standard flatbed truck or lengthwise on trailer. Data Collection Ready |
| PT1000-G | Slide Head Valve Exerciser reaches up to 7′ (depending on application). Valve Exerciser has 850 ft-lb of torque, 14HP direct drive engine power pack. Data Collection Ready |
| PT1000-GT | Slide Head Valve Exerciser reaches up to 7′ (depending on application). Valve Exerciser has 850 ft-lb of torque, 20HP direct drive engine power pack, selector valve, Class II hydraulic tool circuit, 19 gallon oil tank, oil cooler and retractable hose reel. Data Collection Ready |
| PT1000-D1 | Slide Head Valve Exerciser reaches up to 7′ (depending on application). Valve Exerciser has 850 ft-lb of torque, hydraulic pump and electric switch engage clutch (no power pack – applied to D1 ready component). Data Collection Ready |
PT1000 VALVE EXERCISER KITS: TRAILER & CARRIAGE
| Model Identification | Description |
| PT1000-G-T | PT1000 Slide Head Valve Exerciser mounted on a custom trailer. 14hp gas engine direct drive Class II hydraulic pump. 19 gallon hydraulic reservoir. Single axle trailer and can swing out up to 7′ from the base. 850 ft-lb of torque. Data Collection Ready |
| PT1000-GT-T | PT1000 Slide Head Valve Exerciser mounted on a custom trailer. Single axle trailer and can swing out up to 7′ from the base. 850 ft-lb of torque. 20HP direct drive power pack, Class II hydraulic tool circuit, selector valve, flat face connections, oil cooler and retractable hose reel. 19 gallon hydraulic reservoir. 850 ft-lb of torque. Data Collection Ready |
| PT1000-G-C-6′ | PT1000 Slide Head Valve Exerciser mounted on a custom slide out carriage. Mounts onto a standard 6′ pick-up truck bed. Unit stows completely inside bed for travel. Base carriage rolls out 4′ and the valve exerciser head slides out up to 6′ from the base. 10′ overall extension. Powered by a 14hp gas engine direct drive Class II hydraulic pump. 19 gallon hydraulic reservoir. 850 ft-lb of torque. Data Collection Ready |
| PT1000-G-C-8′ | PT1000 Slide Head Valve Exerciser mounted on a custom slide out carriage. Mounts onto a standard 8′ pick-up truck bed. Unit stows completely inside bed for travel. Base carriage rolls out 6′ and the valve exerciser head slides out up to 6′ from the base. 12′ overall extension. Powered by a 14hp gas engine direct drive Class II hydraulic pump. 19 gallon hydraulic reservoir. 850 ft-lb of torque. Data Collection Ready |
