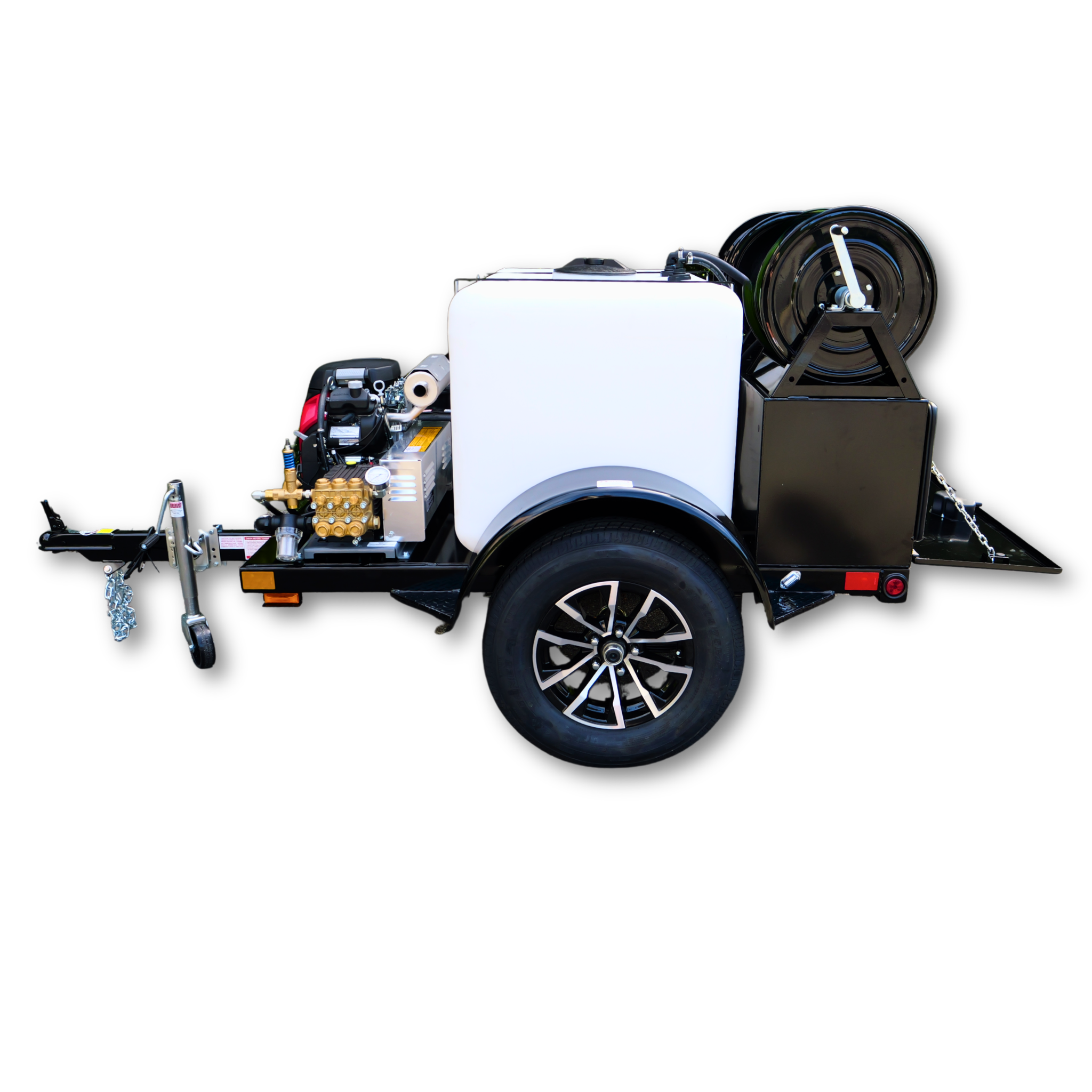

Side View of BE Cold Water Pressure Water Trailer

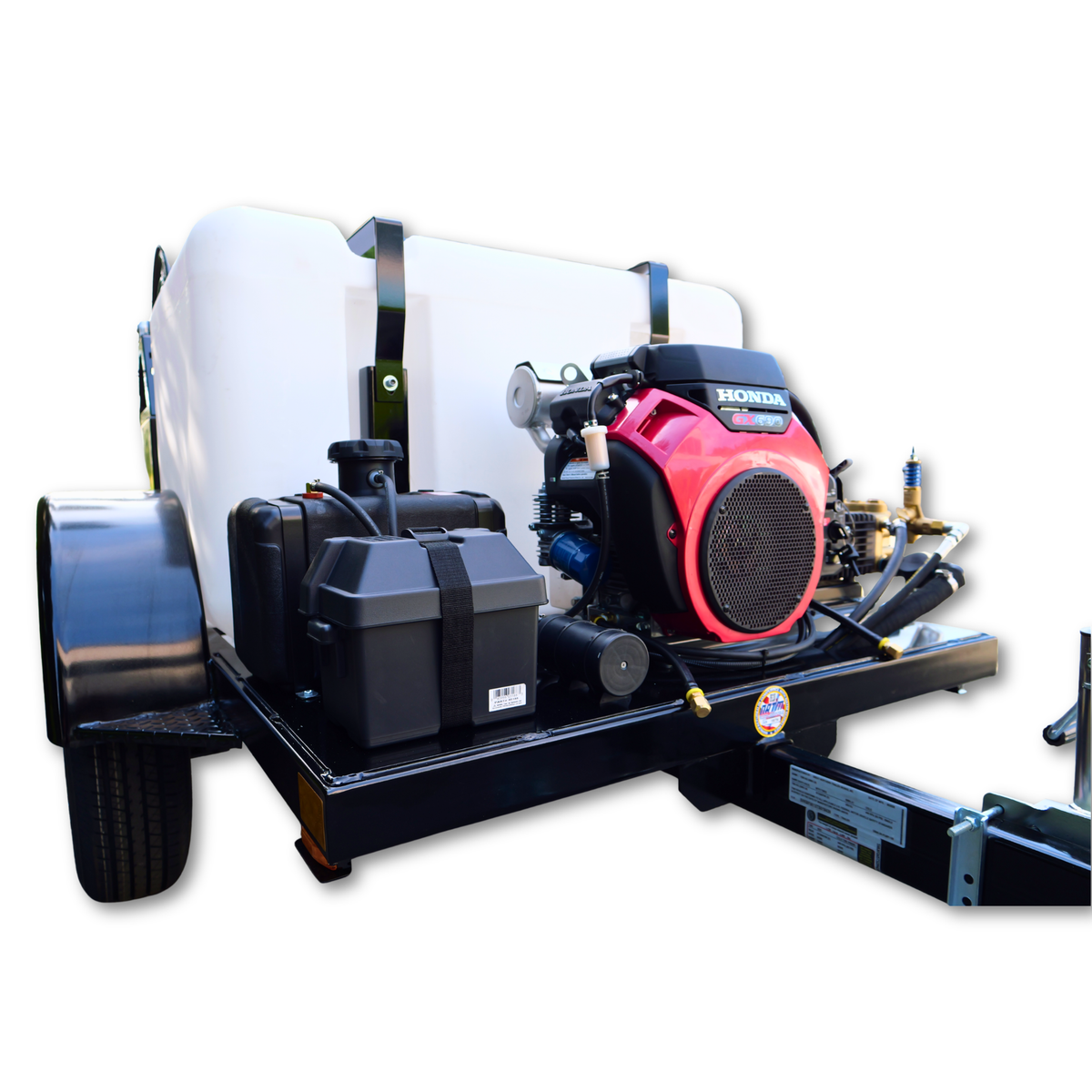

Engine and Pump View of BE Cold Water Pressure Water Trailer

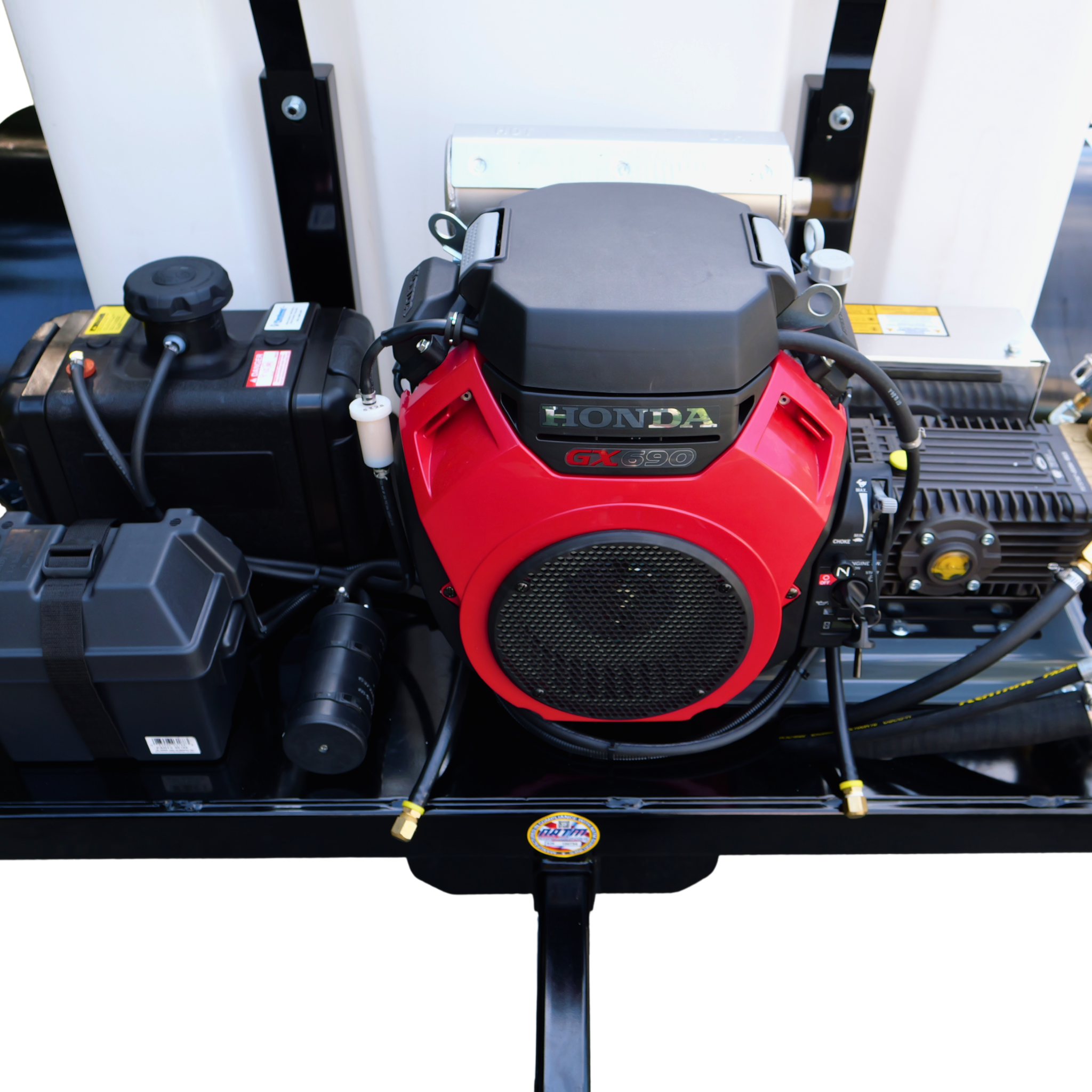

Honda Engine on BE Cold Water Pressure Water Trailer

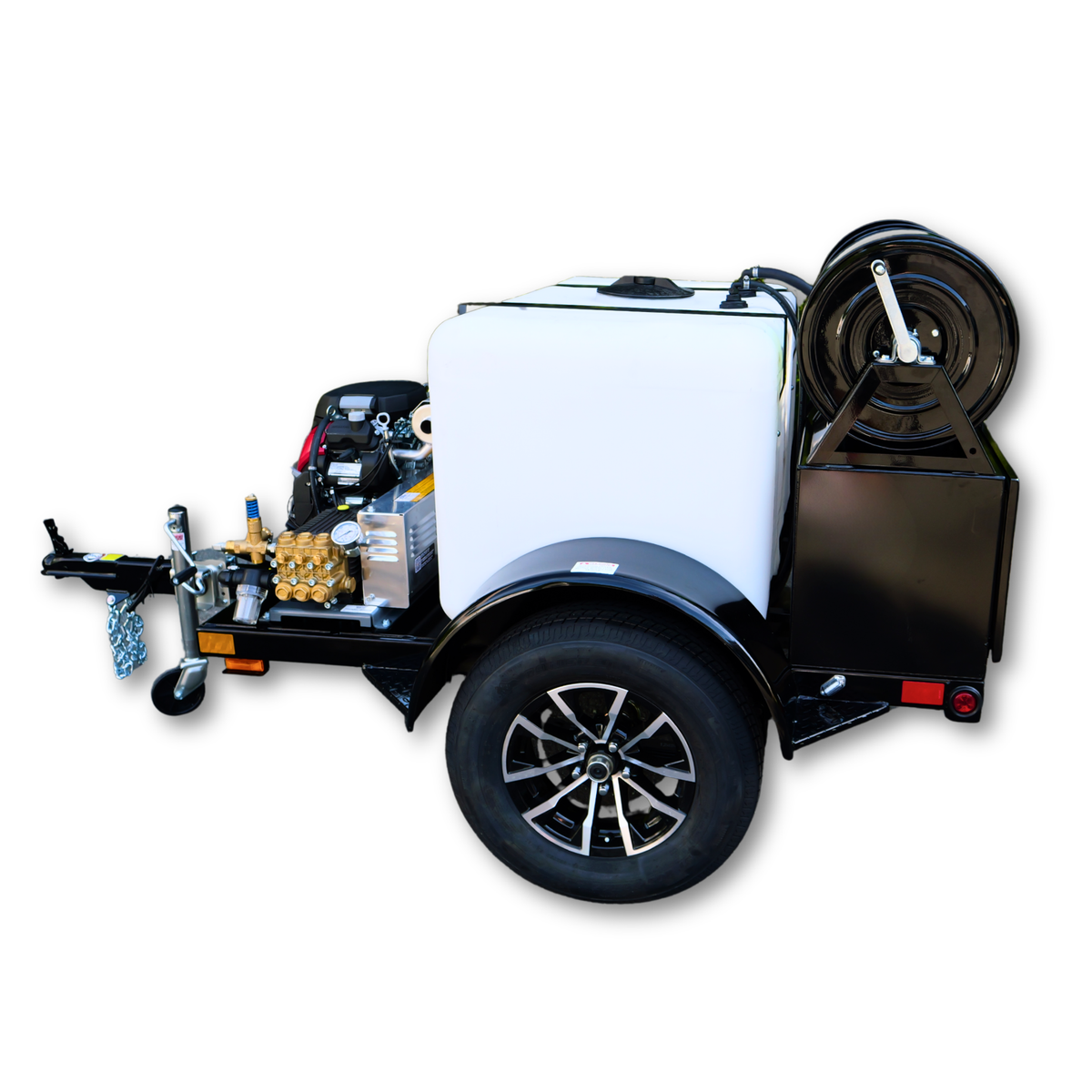

Back Right Side View on BE Cold Water Pressure Water Trailer

Seattle Pump Custom BE Gas Cold Water Pressure Washer Trailer, Belt Drive, 8.0 GPM | 3,500 PSI - Seattle Pump

Gallery
Description
Downloads

Description

The Custom Cold Water Pressure Washer Trailer is built in-house by Seattle Pump for contractors, maintenance crews, and businesses that need a mobile cleaning system. Delivering 8.0 GPM at 3,500 PSI, it combines high water volume with powerful cleaning pressure for concrete, equipment, and other demanding cleaning applications.

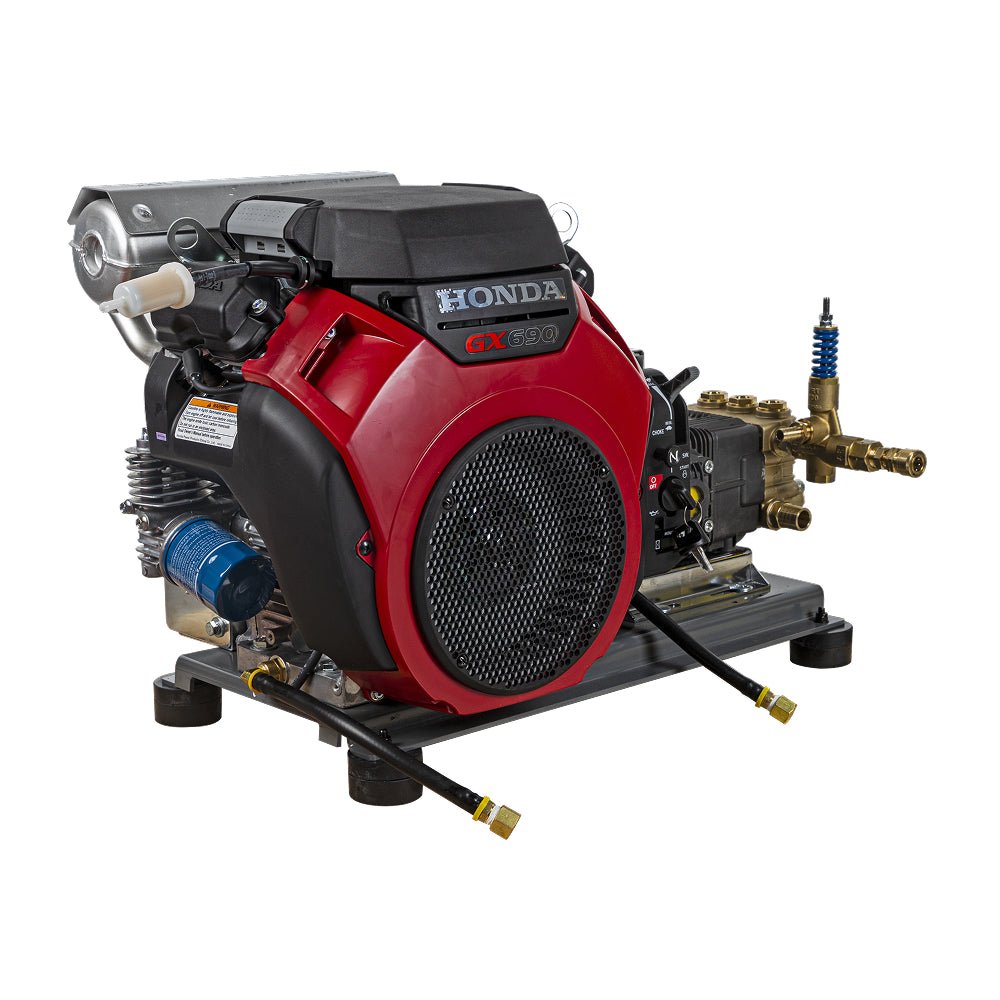

A Honda GX690 electric-start engine powers a General TSF2021 belt-driven triplex pump, providing a dependable foundation for professional pressure washing. The trailer includes 200' of non-marking pressure hose rated for 6,000 PSI and 100' of 3/4" industrial garden hose for water supply. Each trailer is built around your operation, with the final layout and equipment configuration determined during the build process.

Best For

Commercial pressure washing contractors
Concrete, driveway, and sidewalk cleaning
Fleet and equipment washing
Property and facility maintenance
Municipal and industrial cleaning crews

Downloads

Seattle Pump Custom BE Gas Cold Water Pressure Washer Trailer, Belt Drive, 8.0 GPM | 3,500 PSI

KEY FEATURES

Built by Seattle Pump: Custom trailer assembly completed locally for your cleaning operation.
8.0 GPM flow: High water volume supports thorough rinsing and large-area cleaning.
3,500 PSI pressure: Provides cleaning power for dirt, mud, and buildup on suitable surfaces.
Honda GX690 engine: 688cc V-twin gasoline engine with electric start.
General triplex pump: TSF2021 pump with belt drive for professional cleaning applications.
Non-marking pressure hose: Includes 200' of pressure hose rated for 6,000 PSI.
Industrial water supply hose: Includes 100' of 3/4" industrial garden hose.
Mobile trailer platform: Transport your pressure washing equipment between jobsites.
Custom configuration: Trailer layout and equipment selections are established for each build.
Local support: Work with Seattle Pump for equipment selection, service, and replacement parts.

System Type: Custom trailer-mounted cold water pressure washer
Flow Rate: 8.0 GPM
Operating Pressure: 3,500 PSI
Engine: Honda GX690
Engine Displacement: 688cc
Fuel Type: Gasoline
Starting System: Electric start
Pump: General TSF2021 triplex
Drive Type: Belt drive
Pressure Hose: 200' non-marking hose
Pressure Hose Rating: 6,000 PSI
Water Supply Hose: 100' of 3/4" industrial garden hose
Trailer Dimensions and Equipment: Determined by the final build configuration
Builder: Seattle Pump
